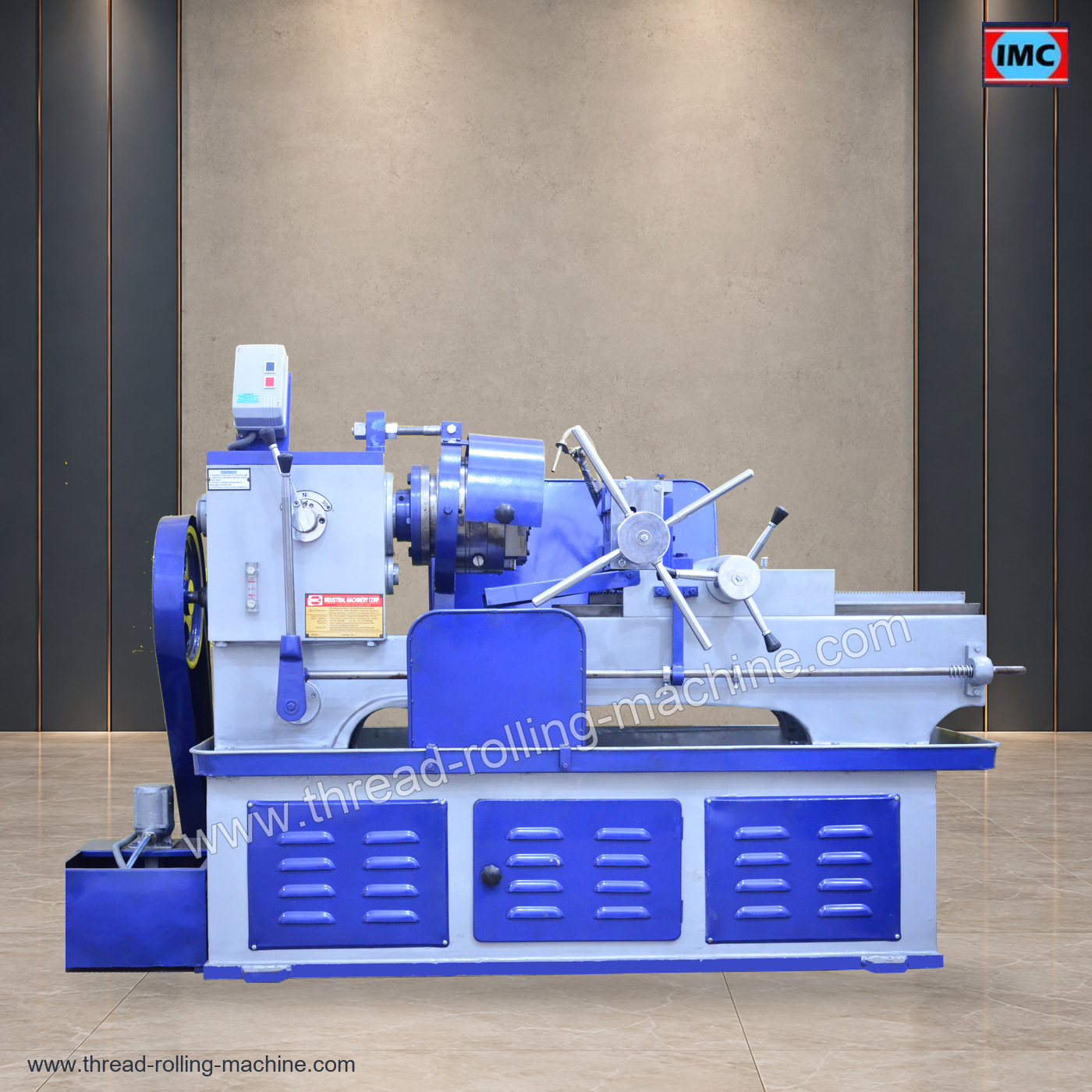

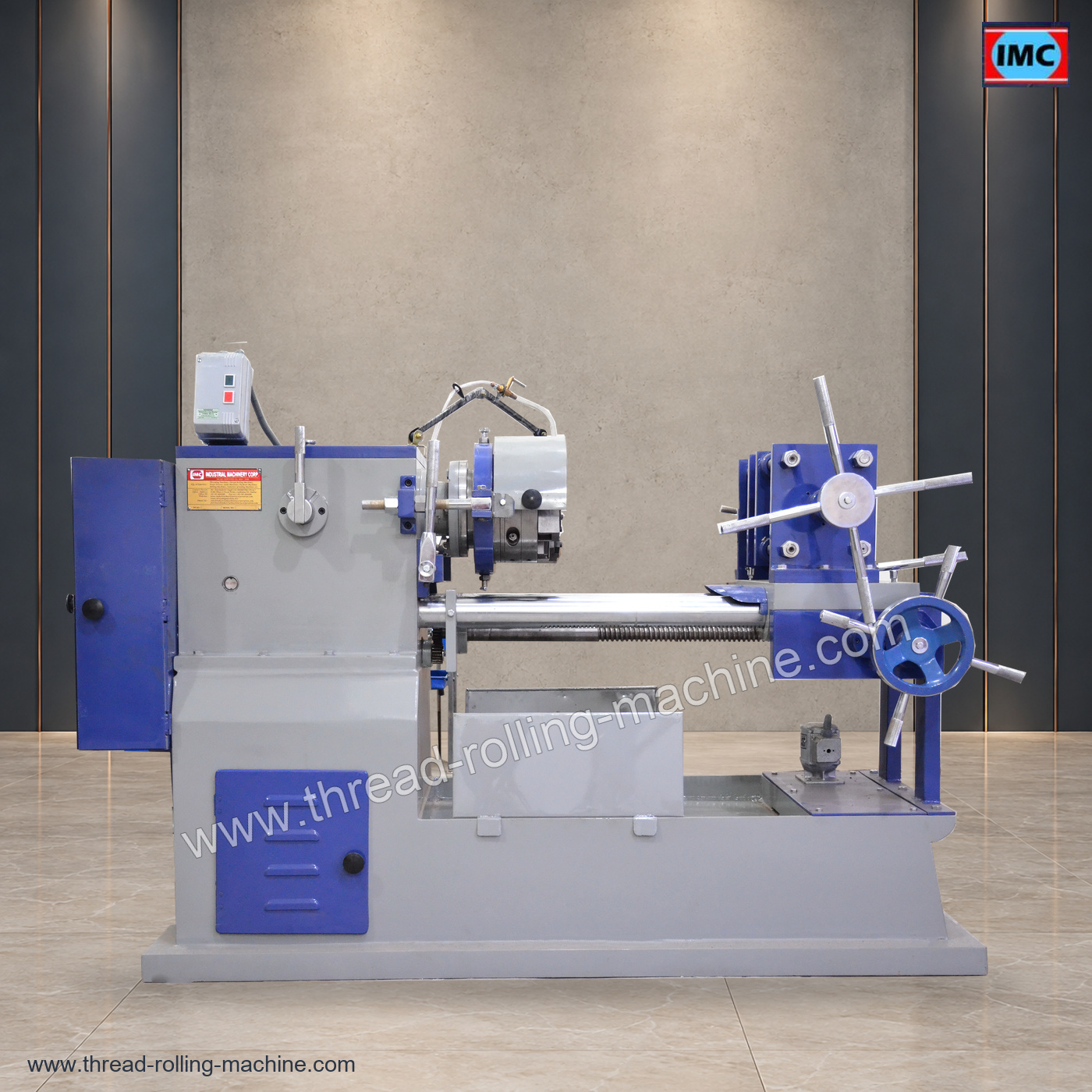

TMT Bar Threading Machine – Chasers & Setup

Review TMT Bar Threading Machine for your component and the required production operation.

Place the operation in the production route

The role of this equipment is to cut the specified external coupler thread on suitably prepared TMT reinforcement-bar ends. Compare the incoming stock with the component required by the next manufacturing or assembly stage. Define rebar grade and diameter, prepared-end drawing, coupler standard, pitch and thread length. The finished drawing should show which dimensions and surfaces this operation must produce.

Plan handling and changes between jobs

Review bar preparation, threading tools, workholding and support for the full bar length, together with loading space and the movement of the component between stages. Identify the coupler system and preparation route so the thread-cutting stage is matched to the required connection. List the sizes and batch quantities before discussing output. Tool changes, handling and inspection should be included when assessing the proposed workshop arrangement.

Connect quality checks to machine selection

Agree how the component will be assessed for thread dimensions, gauge acceptance and engagement with the intended coupler. Identify the representative material and sample needed to establish the setup. Compare the listed models against the drawing and the operation, then ask IMC to state the supplied tools and accessories. Add the chosen options and quantity to the Quote List with the material, destination and power details so the offer reflects the actual production requirement.

Information to send with your enquiry

• Rebar grade and diameter
• Prepared-end drawing
• Coupler standard
• Pitch and thread length

To review your application, send IMC your component drawing and requirements. You can also compare related machines and tooling in the product range.
