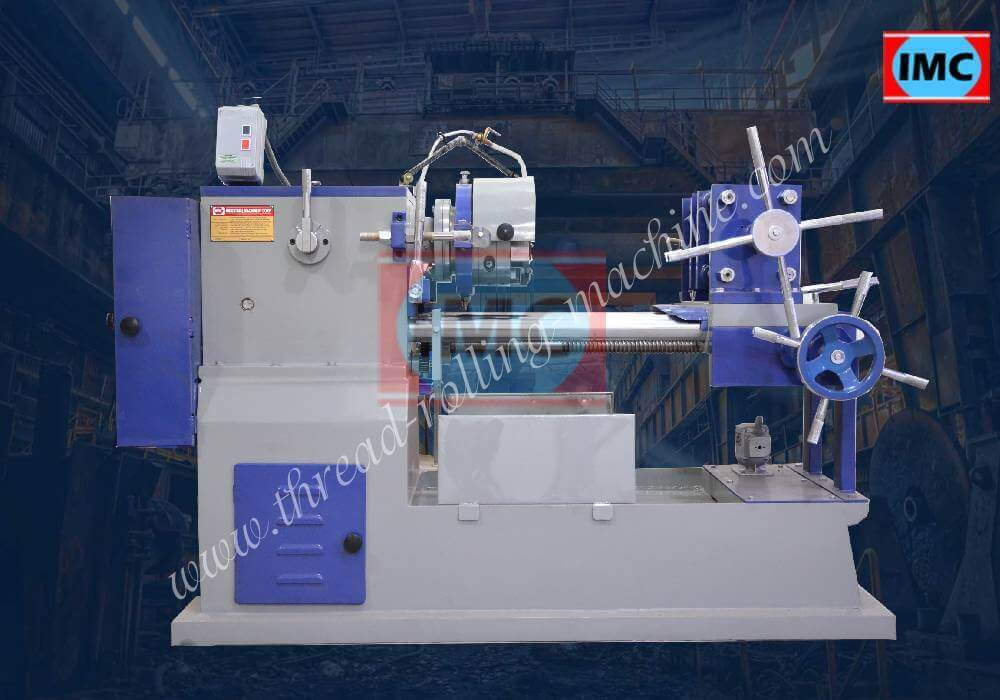

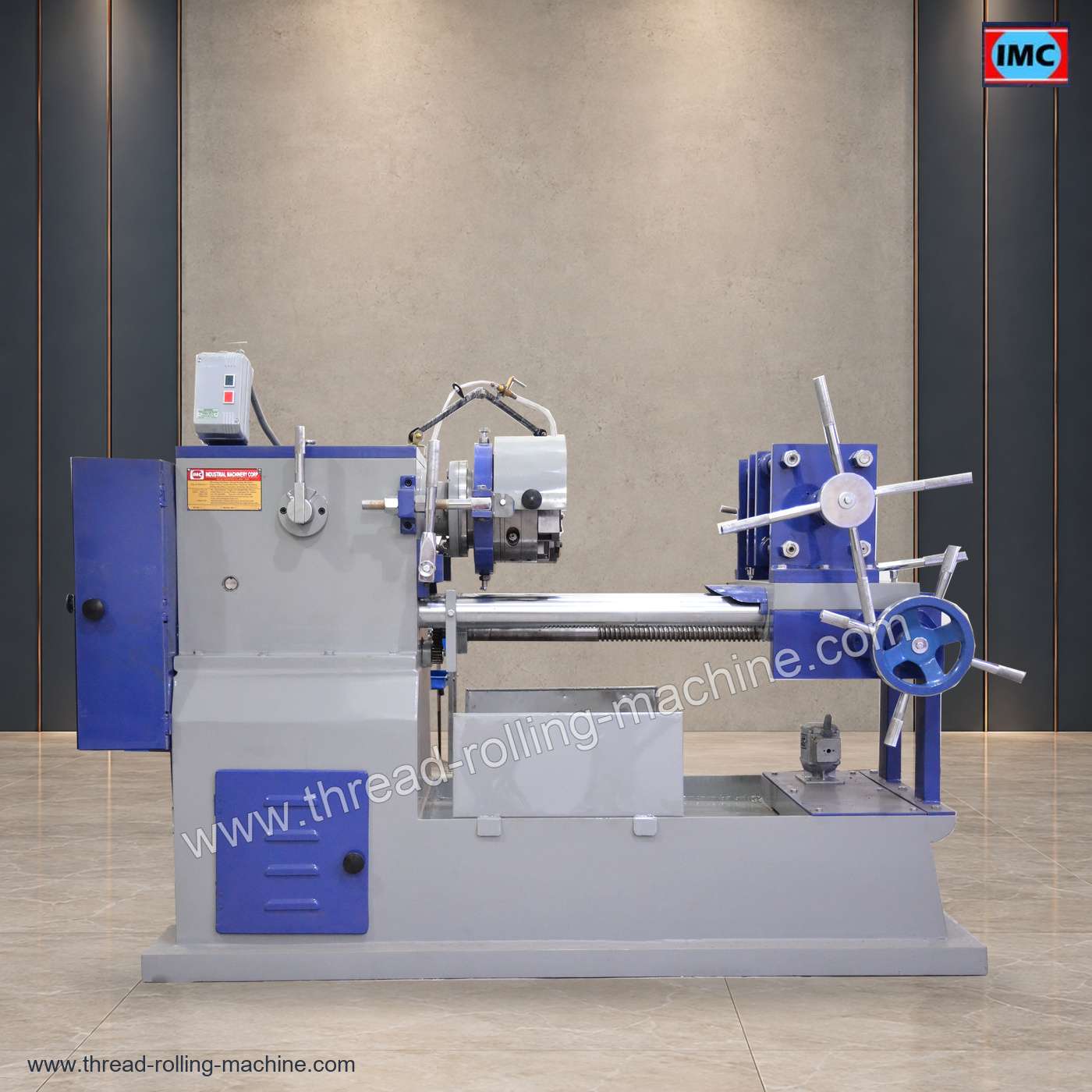

Die Head Rod Threading Machine for External Threads

Rod Threading Machine is an added legitimate eminence invention that we have been manufacturing at our manufacturing unit. As with many of our machines, the Rod Threading Machine created by us has been admired by our hundreds of satisfied customers straddling from across the globe who are satisfyingly using Rod Threading Machine manufactured by Industrial Machinery Corporation. The Machine manufactured by us is a hot favorite in the market as the best quality of our Rod Threading Machine is that it is versatile and very easy to use. We have been acknowledged as the best Rod Threading Machine manufacturers in India satisfying our customers for over ten years. Our customers include some of the best rod threading companies in India. The machines created by us include many features that make this machine produce high-quality threads at a very high speed maintaining perfect accuracy and excellence. The gearbox that we use in our Machine is quite heavy-duty to give maximum support to moving spindle bearings while in working mode. These machines manufactured at Industrial Machinery Corporation are given extra endurance to bear all sorts of wear and tear and are completely abrasion and heat-resistant. While executing the order of our customers, we take special note of the given period while making no compromise whatsoever with the quality of the outcome. We use the best quality raw materials to make this Rod Threading Machine because we perfectly comprehend that if the foundation is qualitatively good then there is no stopping for a Machine from surpassing any type of quality checks coming is the way. Despite all these qualities, the Rod Threading Machine made at Industrial Machinery Corporation is designed not to burn the pockets of the customers.

Rod Threading Machine is used in various industries to draw external threads on the rods and this whole process is carried out with the help of tangential chasers which are used as a cutter in a Rod Threading Machine. The benefit of using tangential chasers is that it keeps the rod at a non-moving position while the blade moves on it making super-fine threads. This technology can be used for cutting various types of threads including BSPT, BSW, BSP, NPT, UNF, METRIC, UNC, ACME, and BSF Threads. The machine mainly consists of the following:-

• Base

• Head Stock

• Saddle

• Bed or Pillar Type Clamping Vice

• Die Head.

Following are some added features of a Rod Threading Machine manufactured at our Industrial Machinery Corporation.

• Our Rod Threading Machine is a Mechanical Unit and is Hand Operated.

• Motor Capacity of our Rod Threading Machine is 5 bhp with a Couple Pump Machine threading Capacity 16 mm to 40 mm (160 mm length of threading)

• Heavy Cutting Blade is fitted in our Rod Threading Machine

• The weight of our Rod Threading Machine is 300 kg approximately and this can be customized as per the requirement of the clients.

• Our Rod Threading Machine is capable of threading several tons of TMT/TOR steel every day without any trouble and it has a cutting oil capacity of 10 lts.

Range of IMC Die Heads.

1/4" to 1" do/-

3/8" to 1.1/2" do/-

1/2" to 2.1/2" do/-

 Specifications:

Rod Threading Machine Tangential Chaser

IMC Threading Tangential Chasers are manufactured from imported High Speed Steel which must pass exacting metallurgical standard. Experienced heat treatment with the automatic imported heat treatment plant and imported Testing equipment's, assures that they will perform satisfactorily in service and produce quality threads within the tolerance for which they ware intended.

IMC Threading Chaser is interchangeable. If one Pc. Of a chaser set is damaged & is beyond use. Then same No. pc. Of the other chaser set lying in stock may be used and there will not be any difference in threading performance and the damaged set can be replaced without the necessity of replacing entire set.
