Die-Head Conduit Pipe Thread Cutting Machine

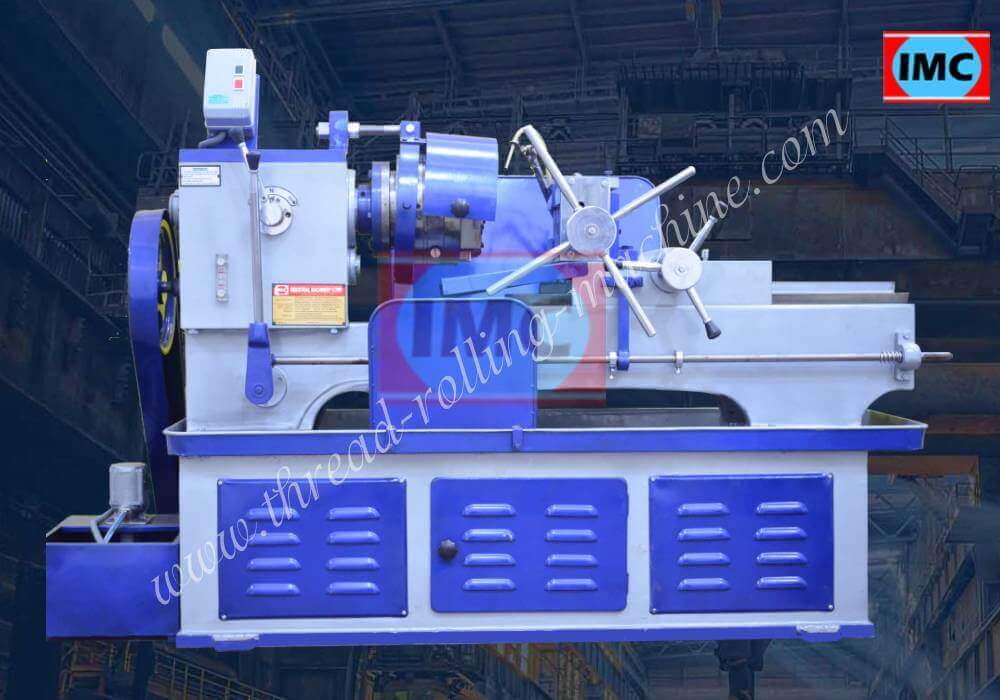

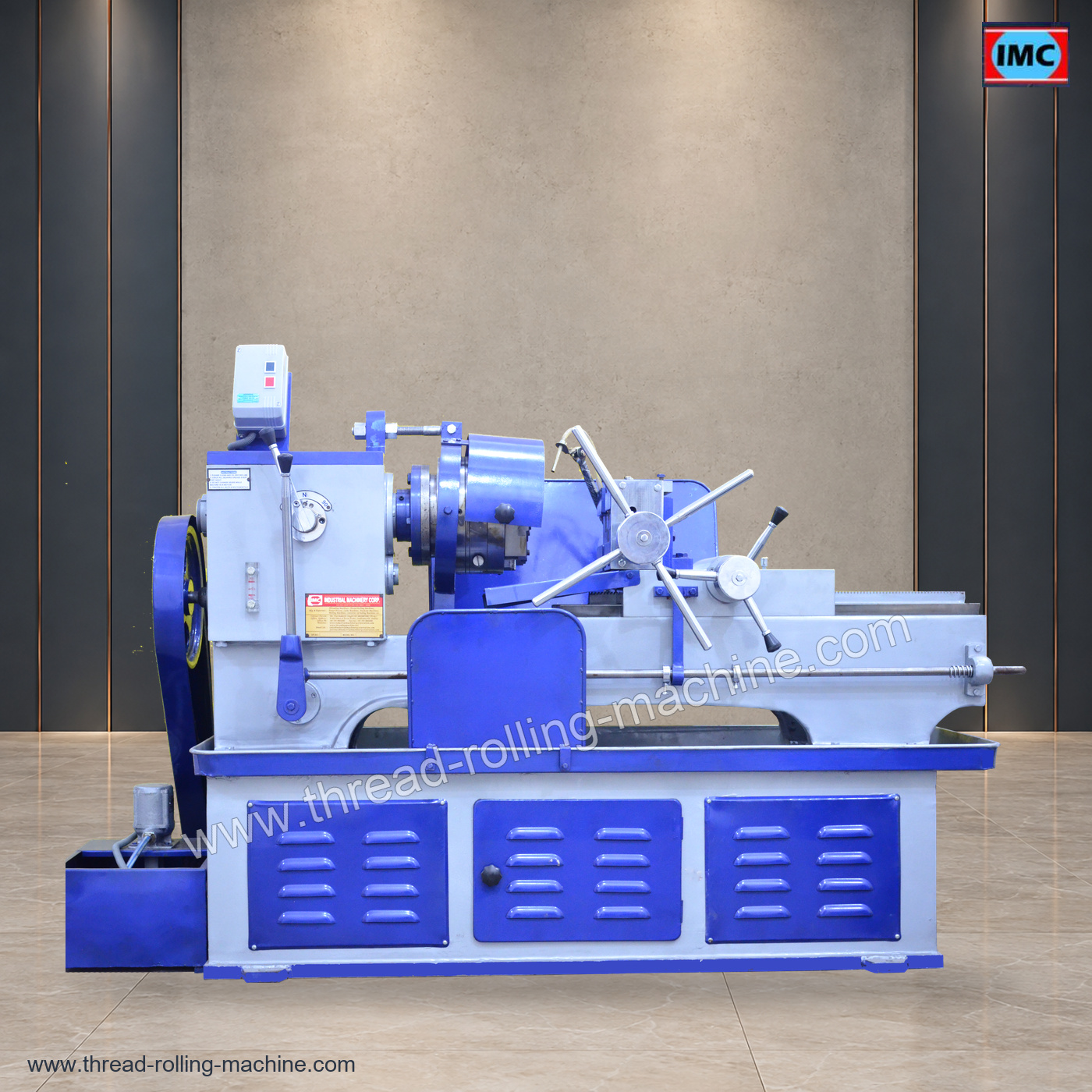

Electric Conduit Pipe Thread Cutting Machine product view
PRICE & QUOTATION
Starting From US$ 3,500
Choose options
Set quantity
Request quotation

Select the required model and specifications to request your quotation.

Review Die-Head Conduit Pipe Thread Cutting Machine for your component and the required production operation.

Place the operation in the production route

The role of this equipment is to cut external threads on compatible conduit pipe ends for the specified threaded fittings. Compare the incoming stock with the component required by the next manufacturing or assembly stage. Define conduit material, diameter, wall section, thread designation and fitting details. The finished drawing should show which dimensions and surfaces this operation must produce.

Plan handling and changes between jobs

Review pipe holding without unsuitable deformation, compatible chasers and end support, together with loading space and the movement of the component between stages. Check the actual conduit and connection drawing; a general pipe-threading size does not identify every conduit system. List the sizes and batch quantities before discussing output. Tool changes, handling and inspection should be included when assessing the proposed workshop arrangement.

Connect quality checks to machine selection

Agree how the component will be assessed for thread engagement with the intended fitting and the required thread length. Identify the representative material and sample needed to establish the setup. Compare the listed models against the drawing and the operation, then ask IMC to state the supplied tools and accessories. Add the chosen options and quantity to the Quote List with the material, destination and power details so the offer reflects the actual production requirement.

Information to send with your enquiry

  • Conduit material
  • Diameter
  • Wall section
  • Thread designation and fitting details

To review your application, send IMC your component drawing and requirements. You can also compare related machines and tooling in the product range.

VIEW SPECIFICATIONS

Tags

Electric Conduit Pipe Threading Machine, Electric Pipe Threading Machine at Best Price in India, Conduit Pipe Threading Machine, electric pipe threading machine price, automatic pipe threading machine, electric pipe threading machine price in india, automatic pipe threading machine, best pipe threading machine, manual pipe threading machine, gi pipe electric threading machine
CONFIGURE YOUR MACHINE

Available options

Select the required options and add this machine to your quotation.

Available Options


Your selected configuration is stored in the existing Quote List flow for review before enquiry.

Product Videos

View full playlist on YouTube
TECHNICAL DATA

Technical Specifications

Model data and technical details supplied for this product. Final configuration can be confirmed against your application.

IMC's electric conduit pipe threading machines are designed to automate the process of threading conduit pipes, making them faster and more efficient than traditional manual methods. The machine uses a rotating die head to cut threads onto the surface of the conduit pipe.

IMC's electric conduit pipe thread cutting machines may have multiple die heads, allowing them to thread multiple pipes simultaneously. They may also be equipped with sensors to detect the position and size of the conduit pipe, ensuring accurate and consistent threading results.

IMC's electric conduit pipe thread cutting machines may have a range of adjustable settings, such as the speed and pressure of the die heads, to allow for customization of the threading process. Additionally, the machines may have safety features, such as automatic shut-offs and emergency stops, to ensure the safety of operators and other personnel on the job site.

Overall, IMC's electric conduit pipe thread cutting machines are valuable tools for industrial applications that require a high volume of conduit pipe threading to be done quickly and efficiently. By automating the process, the machines can help increase productivity, reduce labor costs, and improve the quality and consistency of the finished product.

 Specifications :

MODEL1/4" TO 1" (BED TYPE)3/8" TO 1.1/2" (BED TYPE)1/2" TO 2.1/2" (BED TYPE)
Saddle Movement10"13"22"
Spindle Speed Range75-14075 -14045 - 90
Number of Spindle Speed222
Threading Capacity1/4" to 1"3/8" to 1.1/2"1/2" to 2.1/2"
Production per Hour60-8060-8070-90
H.P. Required3 H.P.3 H.P.7.5 H.P.
Lead ScrewOptionalOptionalOptional
Weight (KG) Approx.500550990
"

Frequently Asked Questions About Electric Conduit Pipe Thread Cutting Machine

Share conduit sizes, thread standard and required threading length. Confirm whether the machine will process one size continuously or change between several conduit sizes.

Electric conduit pipe threading prepares conduit ends for the specified threaded connection. The conduit material, wall thickness and connection standard should be verified before selecting the cutting tools.

Share the conduit specification, outside diameter, wall thickness and required thread standard. Include a coupling drawing or sample so the thread requirement can be checked against its intended connection.
