Rebar Thread Cutting Machine for Forged Bar Ends

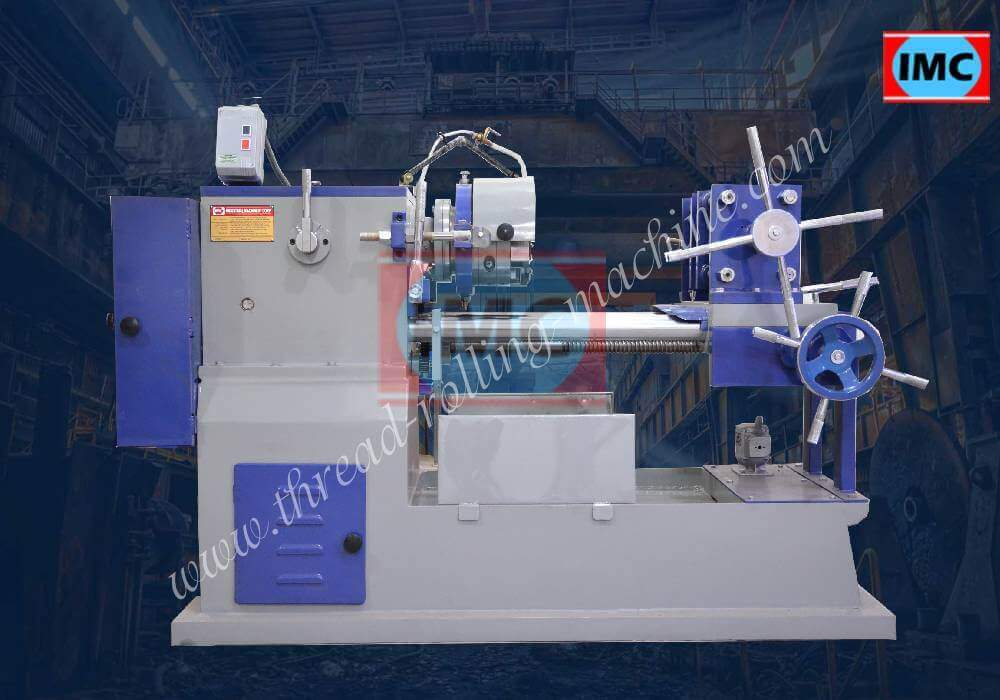

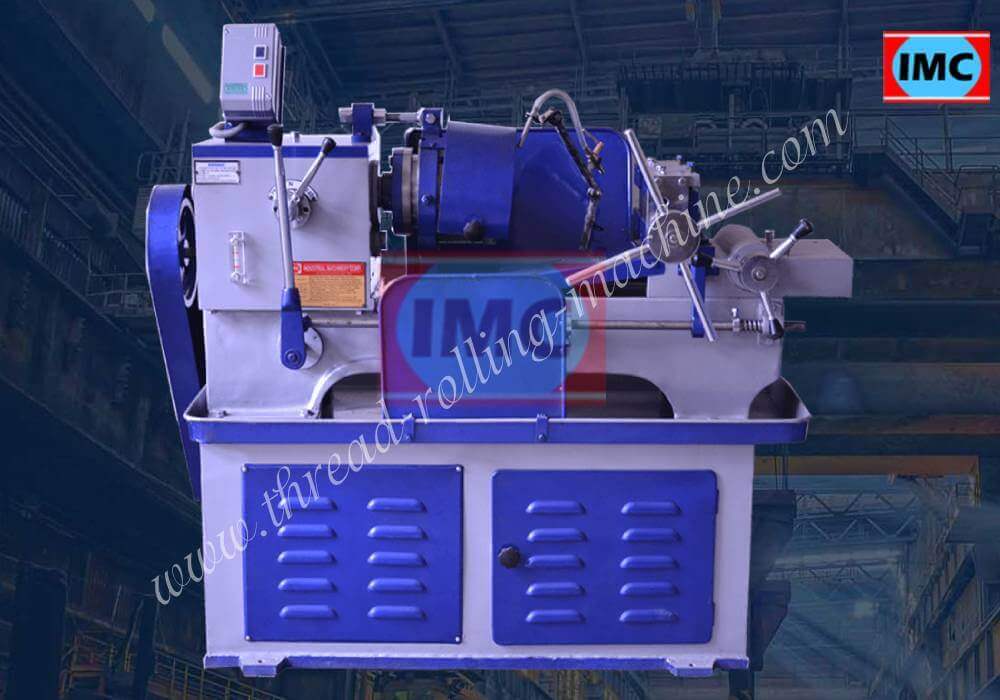

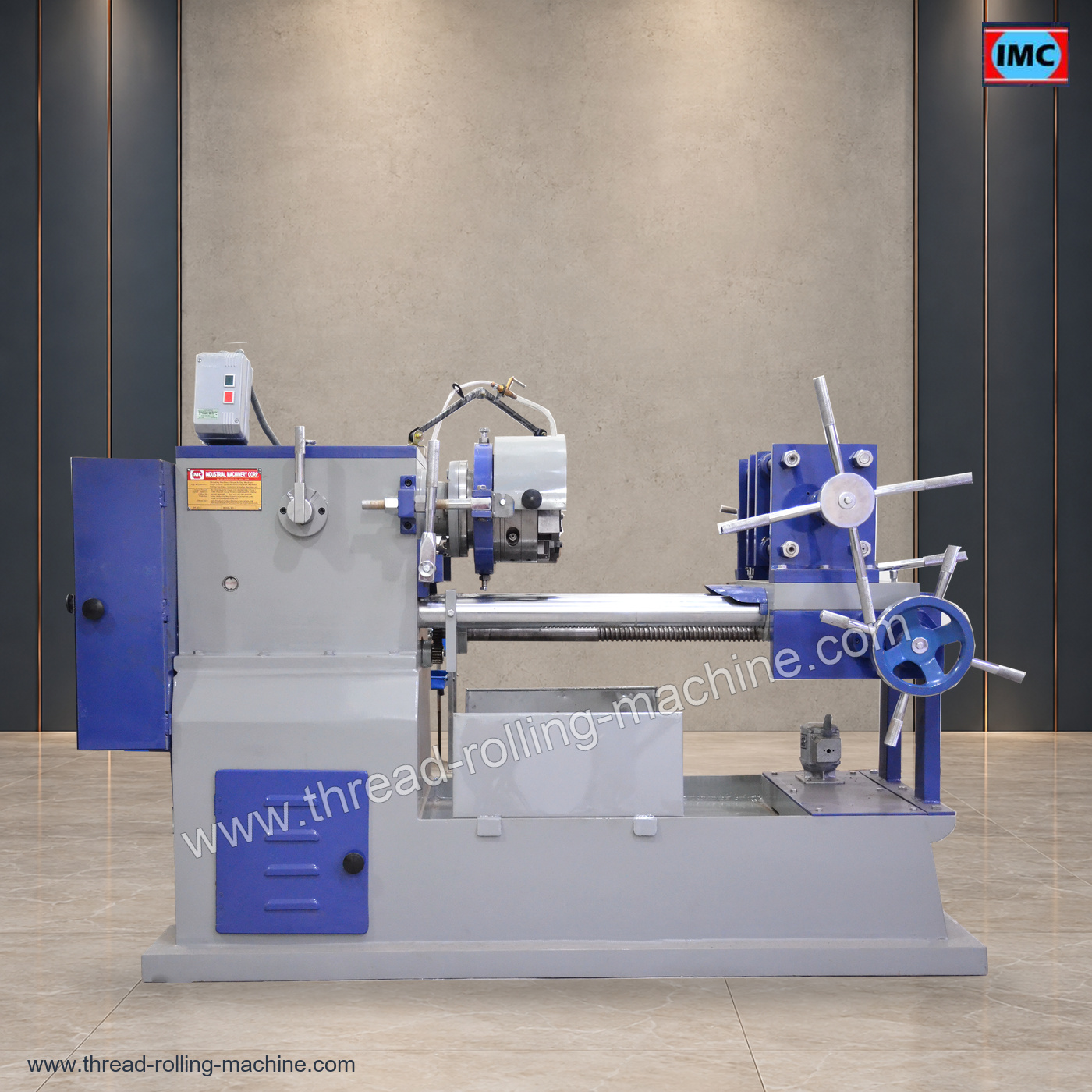

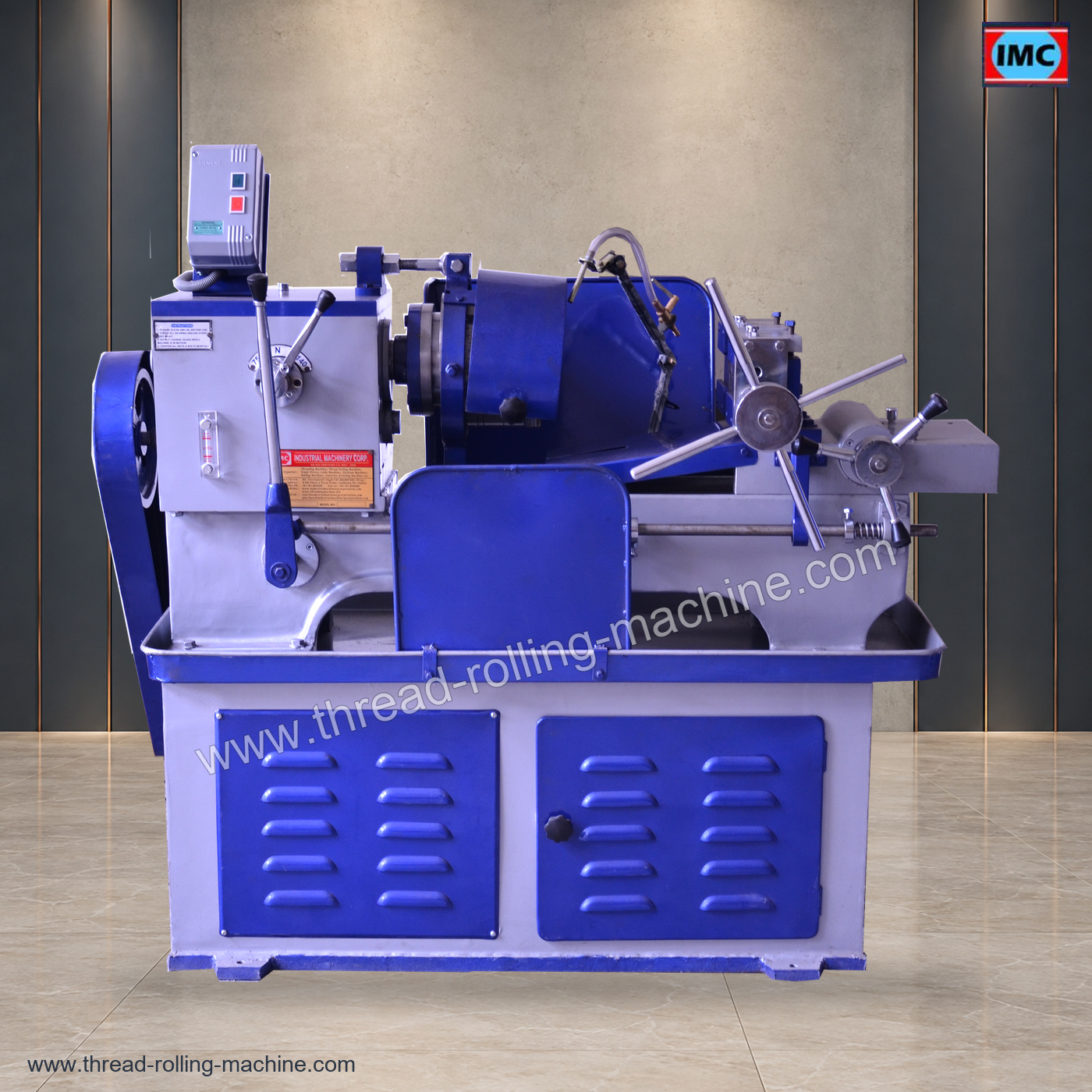

Steel TMT Chaser Rebar Threading Machine by Industrial Machinery Corporation
PRICE & QUOTATION
Starting From US$ 4,000
Choose options
Set quantity
Request quotation

Select the required model and specifications to request your quotation.

Review Rebar Thread Cutting Machine for Forged Bar Ends for your component and the required production operation.

Place the operation in the production route

The role of this equipment is to cut threads on suitably prepared TMT rebar ends with chasers and a compatible die head. Compare the incoming stock with the component required by the next manufacturing or assembly stage. Define bar grade and diameter, prepared-end drawing, coupler system, pitch and thread length. The finished drawing should show which dimensions and surfaces this operation must produce.

Plan handling and changes between jobs

Review the required bar-end forging or other preparation, chaser set and bar holding, together with loading space and the movement of the component between stages. For forged-end applications, establish the forging and threading sequence together; the threader is a separate process stage. List the sizes and batch quantities before discussing output. Tool changes, handling and inspection should be included when assessing the proposed workshop arrangement.

Connect quality checks to machine selection

Agree how the component will be assessed for prepared-end dimensions, thread gauge acceptance and coupler engagement. Identify the representative material and sample needed to establish the setup. Compare the listed models against the drawing and the operation, then ask IMC to state the supplied tools and accessories. Add the chosen options and quantity to the Quote List with the material, destination and power details so the offer reflects the actual production requirement.

Information to send with your enquiry

  • Bar grade and diameter
  • Prepared-end drawing
  • Coupler system
  • Pitch and thread length

To review your application, send IMC your component drawing and requirements. You can also compare related machines and tooling in the product range.

VIEW SPECIFICATIONS

Tags

Bar Threading Machine Manufacture, Rebar Threading Machine, Rebar threading machines, tmt bar threading machines, rebar threading die head, Steel TMT Chaser Rebar Threading Machine, Semi automatic TMT Bar Threading Machine, Steel TMT Chaser Rebar Threading Machine, TMT Rebar Threading Machine
CONFIGURE YOUR MACHINE

Available options

Select the required options and add this machine to your quotation.

Available Options


Your selected configuration is stored in the existing Quote List flow for review before enquiry.

Product Videos

View full playlist on YouTube
TECHNICAL DATA

Technical Specifications

Model data and technical details supplied for this product. Final configuration can be confirmed against your application.

We have a wide range of semi-automatic Steel TMT Chaser Rebar Threading Machine which is used for site projects and it does outside threading on TMT bars. Steel TMT Chaser Rebar Threading Machine threads the standard EN8-D TMT bar. The threading is done after the Rebar TMT bar forging process. Threading Machine is used for High Production.

Industrial Machinery Corporation has been offering a High-Speed Steel TMT Chaser Rebar Threading Machine. This Rebar Threading Machine is made from high-density alloys. This machine is manufactured by our experts using excellent quality components and cutting-edge technology. This Threading Machine is used for saving time and effort. List of threads that can be cut using TMT Rebar Threading Machine: Metric, BSP, BSPT, NPT, UNF, UNC, BSW, Acme Threads, B.S.F. This Threading Machine has features like robust construction, high performance, and durability.

Steel TMT Chaser Rebar Threading Machine needs less maintenance and works for long hours. This Machine tool's cost is very cheap. We have gained all the vital mastery and specialized know-how to make the best Rebar Threading Machine arriving in the market. We assemble our Rebar Threading Machine with all the customizations as said by the customer preceding the beginning of production. If you need to buy the TMT rebar threading machine. Industrial Machinery Corporation is a great choice, as they not only offer a vast range, but also the assurance that each machine that is sent out of their unit is a piece of excellence.

Our TMT Rebar Threading Machines are running in various countries like Abu Dhabi, Algeria, Australia, Bangladesh, Bhutan, Canada, Central America, Colombia, Germany, Ghana, Jordan, Kuwait, Lebanon, Malaysia, Maldives, Mexico, Myanmar, Nepal, Peru, Philippines, Qatar, Saudi Arabia, South Australia, Sri Lanka, Thailand, Tunisia, Turkey, U.A.E, USA, Vietnam.

Steel TMT Chaser Rebar Threading Machine Specifications:

Model

1/4" to 1"

(6MM to 25MM)

(Bed Type)

3/8" to 1.1/2"

(10MM to 40MM)

(Bed Type)

1/2" to 2.1/2"

(12MM to 65MM)

(Bed type)

Saddle Movement10"10" - 12"22"
Spindle Speed Range75-14075-14045-90
Number of Spindle Speed223
Threading Capacity1/4" to 1"3/8" to 1.1/2"1/2" to 2.1/2"
Production per Hour60-8060-8070-90
H.P. Required3 H.P.3 H.P.7.5 H.P.
Lead ScrewOptionalOptionalOptional
Weight (KG) Approx.500550990


threading tangential chaser 1

IMC Tangential Threading Chasers are manufactured from imported High-Speed Steel which must pass exacting metallurgical standards. Experienced heat treatment with the automatically imported heat treatment plant and imported Testing equipment, assure that they will perform satisfactorily in service and produce quality threads within the tolerance for which they ware intended. These Tangential Chasers are used in Rebar Threading Machine.

Frequently Asked Questions About Steel TMT Chaser Rebar Threading Machine

Include bar sizes, material grade, thread details and the end preparation specified for your connection. Ask which chasers and setup changes are needed across the required diameter range.

A chaser-based TMT rebar threading machine cuts the required thread using a matched set of chasers. Bar preparation and the approved coupler system must be considered alongside the threading machine.

State the bar grade, diameter range, required thread and existing die-head details. Ask IMC to confirm the chaser specification and the recommended bar-end condition for the proposed process.
