Automatic Cold Thread Rolling Machine for Fasteners

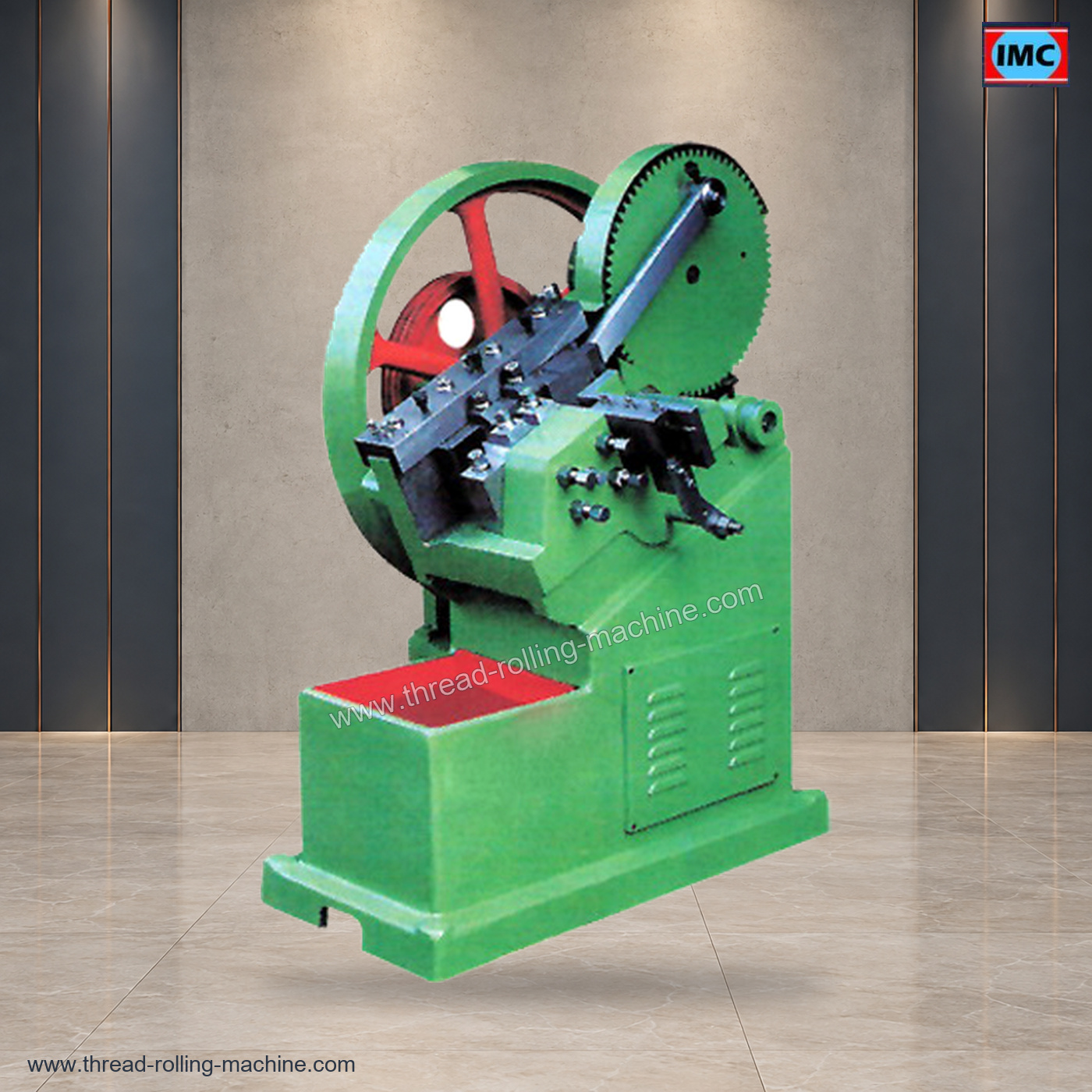

Automatic Cold Thread Rolling Machine product view

Automatic Cold Thread Rolling Machine product view thumbnail

Automatic Cold Thread Rolling Machine product view additional view 1

Review Automatic Cold Thread Rolling Machine for Fasteners for your component and the required production operation.

Place the operation in the production route

The role of this equipment is to form threads on suitable bolt blanks using an automatic flat-die rolling configuration. Compare the incoming stock with the component required by the next manufacturing or assembly stage. Define fastener drawing, blank material and dimensions, thread profile and batch size. The finished drawing should show which dimensions and surfaces this operation must produce.

Plan handling and changes between jobs

Review flat dies, the feeding configuration supplied and size-change arrangements, together with loading space and the movement of the component between stages. Confirm which feeding and handling operations are included in the offered automatic configuration. List the sizes and batch quantities before discussing output. Tool changes, handling and inspection should be included when assessing the proposed workshop arrangement.

Connect quality checks to machine selection

Agree how the component will be assessed for thread fit, formed profile and handling of accepted and rejected components. Identify the representative material and sample needed to establish the setup. Compare the listed models against the drawing and the operation, then ask IMC to state the supplied tools and accessories. Add the chosen options and quantity to the Quote List with the material, destination and power details so the offer reflects the actual production requirement.

Information to send with your enquiry

Fastener drawing
Blank material and dimensions
Thread profile and batch size

To review your application, send IMC your component drawing and requirements. You can also compare related machines and tooling in the product range.

VIEW SPECIFICATIONS

Available options

Select the required options and add this machine to your quotation.

Available Options

Mini Max Diameter of the job

Max Thread Length Require

Purchase

Model No You Are Interested

Expected Price

Your selected configuration is stored in the existing Quote List flow for review before enquiry.

VIDEO REFERENCE

Machine Videos Gallery

No product-specific playlist is stored for this item yet. View IMC machine demonstrations and production videos in the main gallery.

View Machine Videos

TECHNICAL DATA

Technical Specifications

Model data and technical details supplied for this product. Final configuration can be confirmed against your application.

The automatic cold thread rolling machine is designed to automate the process of thread rolling, making it faster and more efficient than traditional manual methods. The machine typically has a series of dies that rotate around the workpiece, pressing into the material to create the threads.

The machine may have multiple rolling heads, allowing it to roll multiple threads simultaneously. It may also be equipped with sensors to detect the position and size of the workpiece, ensuring accurate and consistent thread rolling results.

The machine may have a range of adjustable settings, such as the speed and pressure of the rolling heads, to allow for customization of the thread rolling process. Additionally, the machine may have safety features, such as automatic shut-offs and emergency stops, to ensure the safety of operators and other personnel on the job site.

Overall, an automatic cold thread rolling machine is a valuable tool for industrial applications that require a high volume of thread rolling to be done quickly and efficiently. By automating the process, the machine can help increase productivity, reduce labor costs, and improve the quality and consistency of the finished product.

Automatic Cold Thread Rolling Machine Specifications:

Model No.	FDTRM-1	FDTRM-2	FDTRM-3	FDTRM-4	FDTRM-5	FDTRM-6
Min. Max. Dia Can Be Rolled	1/16"x1/4"	1/8"x1/2"	1/8"x 1/2"	1/4"x5/8"	1/4"x3/4"	1/4" x7/8"
Max. Length of Thread	2"	2.1/2"	3"	3"	4"	4"
Dimension of Fixed Dia	3"x2"x1"	5"x2.1/2"x1"	5"x3"x1"	6"x3"x1"	6"x4"x1"	7"x4"x1"
Dimension of Moving Dia	4"x2"x1"	6"x2.1/2"x1"	6"x3"x1"	7"x3"x1"	7"x4"x1"	8"x4"x1"
Production in Pieces Per Minute	80	60	60	50	30	30
Power Required in H.P.	2	3	5	7.5	10	15

Frequently Asked Questions About Automatic Cold Thread Rolling Machine

What details should I send for Automatic Cold Thread Rolling Machine?

Provide blank geometry, material, thread pitch and finished thread length. Confirm the type of rolling arrangement and the level of loading automation required for your parts.

What is Automatic Cold Thread Rolling Machine used for?

Automatic cold thread rolling is used to form external threads on prepared blanks with matching dies. The required feeding arrangement and blank consistency are part of the machine selection.

What does an automatic thread-rolling enquiry need to include?

Specify the blank drawing, material, finished thread and intended output. Ask IMC to state the feeding arrangement, operator tasks and tooling included in the proposed automatic configuration.
