Coil Rod & Coil Bar Straightening and Cutting Machine

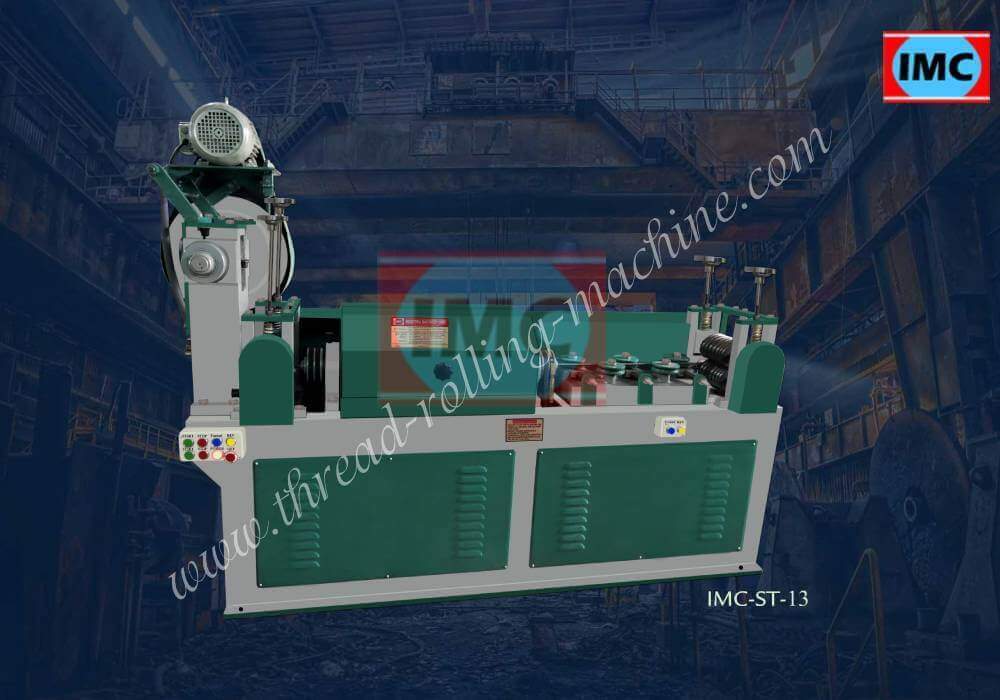

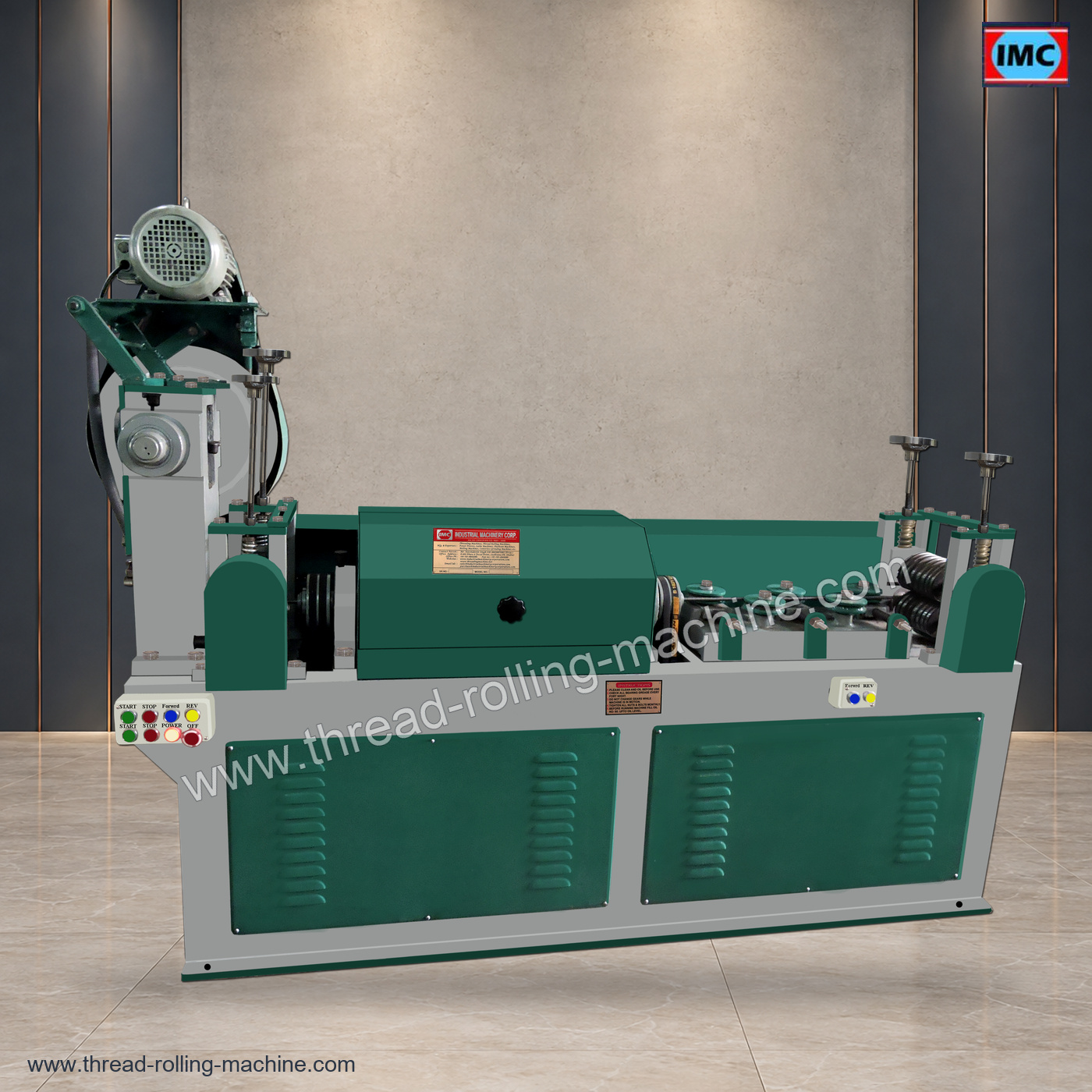

Wire Straightening And Cutting Machine by Industrial Machinery Corporation

Wire Straightening And Cutting Machine by Industrial Machinery Corporation thumbnail

Wire Straightening And Cutting Machine by Industrial Machinery Corporation additional view 1

Review Coil Rod & Coil Bar Straightening and Cutting Machine for your component and the required production operation.

Place the operation in the production route

The role of this equipment is to straighten suitable wire, coil rod or coil bar and cut it to specified lengths. Compare the incoming stock with the component required by the next manufacturing or assembly stage. Define material grade, stock diameter, coil condition, cut length and straightness requirement. The finished drawing should show which dimensions and surfaces this operation must produce.

Plan handling and changes between jobs

Review coil handling, straightening settings, feeding and the cutting arrangement, together with loading space and the movement of the component between stages. Coil rod and coil bar compatibility must be assessed against the actual material and section rather than their names alone. List the sizes and batch quantities before discussing output. Tool changes, handling and inspection should be included when assessing the proposed workshop arrangement.

Connect quality checks to machine selection

Agree how the component will be assessed for cut length, straightness and the surface condition of the finished pieces. Identify the representative material and sample needed to establish the setup. Compare the listed models against the drawing and the operation, then ask IMC to state the supplied tools and accessories. Add the chosen options and quantity to the Quote List with the material, destination and power details so the offer reflects the actual production requirement.

Information to send with your enquiry

Material grade
Stock diameter
Coil condition
Cut length and straightness requirement

To review your application, send IMC your component drawing and requirements. You can also compare related machines and tooling in the product range.

VIEW SPECIFICATIONS

Available options

Select the required options and add this machine to your quotation.

Available Options

Min And Max Diameter of the Job

Maximum Length Required

Quantity Required

Expected Price

Purchase

Your selected configuration is stored in the existing Quote List flow for review before enquiry.

Product Videos

View full playlist on YouTube

IMC-ST-10 Automatic Wire Cutting and Straightening System

Wire | Rod straightening and cutting machine

IMC Wire Straightening and Cutting Machine 16MM 6M Long Manufacturer, Exporter Punjab, India

Wire Straightening and Cutting Machine 16MM | Industrial Production

Wire Straightening and Cutting Machine 16MM 6M Long Length Manufacturer India

Wire Rod Straightening and Cutting Machine | High-Precision Solutions by IMC

TECHNICAL DATA

Technical Specifications

Model data and technical details supplied for this product. Final configuration can be confirmed against your application.

A wire straightening and cutting machine is a type of industrial equipment that is used to straighten and cut wire or metal rods into precise lengths. It is commonly used in manufacturing processes where wire or metal rods need to be cut to specific lengths for use in various products.

The machine typically consists of a feeding system that pulls wire or metal rods from a coil or spool, straightens the wire or rod, and then cuts it to the desired length. The cutting mechanism may use a shear, a rotary cutter, or other cutting tool, depending on the application.

Wire straightening and cutting machines are used in a variety of industries, including construction, automotive, aerospace, and electronics manufacturing. They are particularly useful for applications where precision and consistency are important, such as in the production of fasteners, springs, and wire forms.

Overall, wire straightening and cutting machines can increase efficiency and accuracy in manufacturing processes, helping to reduce waste and improve product quality.

Specifications :	IMC-ST-7	IMC-ST-8	IMC-ST-10	IMC-ST-12	IMC-ST-13
In Thickness of wire	2 to 7mm	3 to 8mm	4 to 10mm	4 to 12mm	3 to 13mm
In Length of wire to be cut automatically	As per Requirement	As per Requirement	As per Requirement	As per Requirement	As per Requirement
Feeding capacity per min.	70" feet	70" feet	70" feet	60" feet	60" feet
Power of motor H.P.	3 H.P.	5 H.P.	5 H.P.	10 H.P.	10 H.P.
Required R.P.M.	1440	1440	1440	1440	1440
Approx. Weight in Kg.	410	460	550	1000	1200
Floor space required	42"x18"	48"x20"	52"x20"	60"x22"	82"x22"

Specifications :	IMC-ST-14	IMC-ST-15	IMC-ST-16	IMC-ST-20	IMC-ST-25
In Thickness of wire	5 to 14mm	6 to 15mm	8 to 16mm	10 to 20mm	15 to 25mm
In Length of wire to be cut automatically	As per Requirement	As per Requirement	As per Requirement	As per Requirement	As per Requirement
Feeding capacity per min.	60" feet	60" feet	60" feet	60" feet	40" feet
Power of motor H.P.	10 H.P.	15 H.P.	15 H.P.	25 H.P.	30 H.P.
Required R.P.M.	1440	1440	1440	1440	1440
Approx. Weight in Kg.	1300	1500	2500	3000	3500
Floor space required	91"x22"	105"x24"	125"x24"	150"x27"	180"x36"

Frequently Asked Questions About Wire Straightening And Cutting Machine

What details should I send for Wire Straightening And Cutting Machine?

Provide the wire grade and diameter range, incoming stock format and cut lengths. Include your length tolerance and output requirement for the intended job.

What is Wire Straightening And Cutting Machine used for?

Wire straightening and cutting converts coiled or bent wire stock into prepared lengths. The material, wire diameter and required straightness need to be considered together when selecting the setup.

What wire information is needed for straightening and cutting?

Provide the wire diameter, material grade, coil condition and required finished lengths. State the straightness and cut-length requirements and ask for a trial on representative wire.
