Scaffolding Pipe Thread Machines – Process Selection

Review Scaffolding Pipe Thread Machines for your component and the required production operation.

Place the operation in the production route

The role of this equipment is to select a thread-cutting or thread-rolling process for the specified scaffolding pipe. Compare the incoming stock with the component required by the next manufacturing or assembly stage. Define pipe material, diameter, wall thickness, thread form, pitch and length. The finished drawing should show which dimensions and surfaces this operation must produce.

Plan handling and changes between jobs

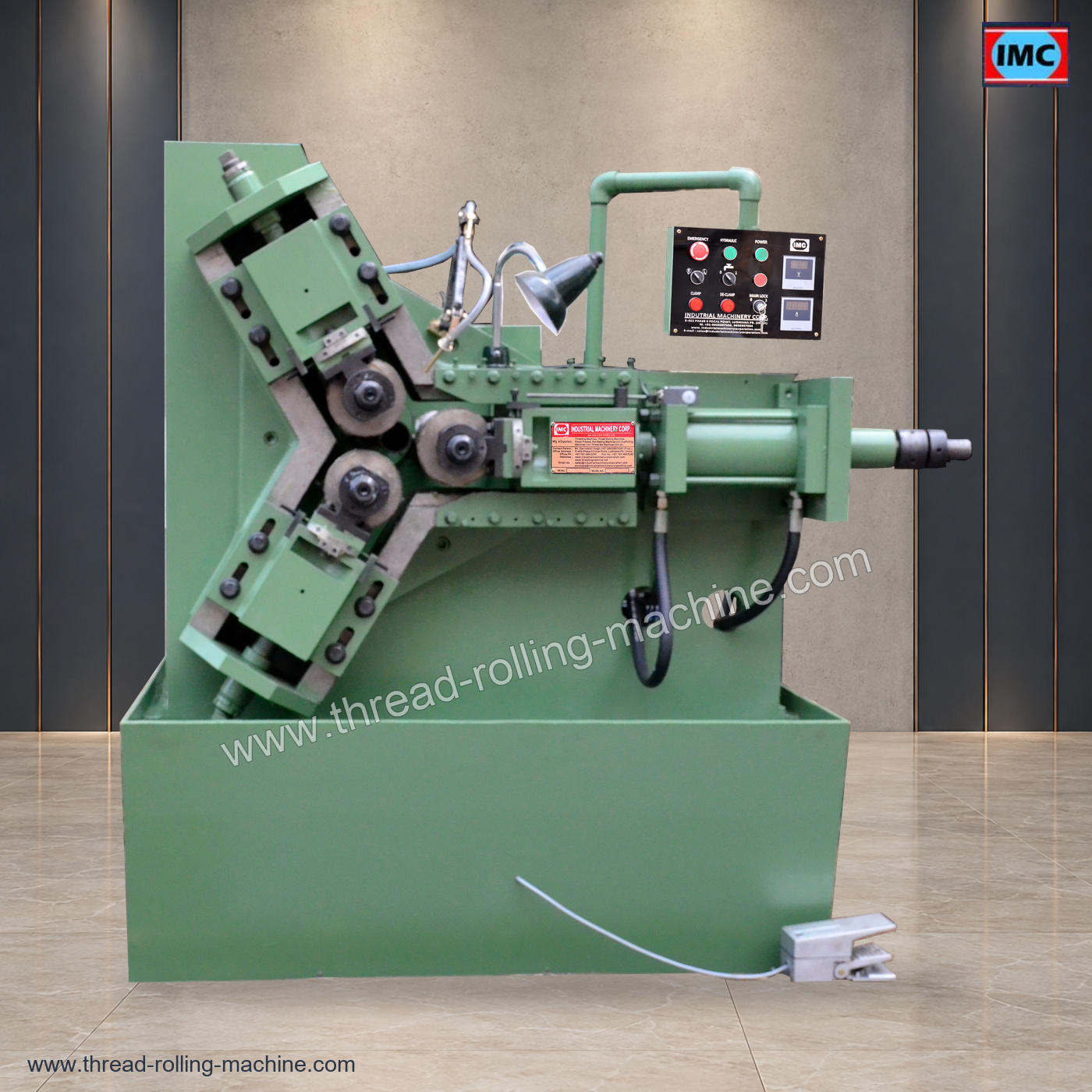

Review cutting chasers and die-head travel, or rolling dies and feed configuration, together with loading space and the movement of the component between stages. Cutting removes material, while rolling forms the thread by displacement. These are separate machine and tooling arrangements. List the sizes and batch quantities before discussing output. Tool changes, handling and inspection should be included when assessing the proposed workshop arrangement.

Connect quality checks to machine selection

Agree how the component will be assessed for thread gauge acceptance, mating-part fit and pipe condition. Identify the representative material and sample needed to establish the setup. Compare the listed models against the drawing and the operation, then ask IMC to state the supplied tools and accessories. Add the chosen options and quantity to the Quote List with the material, destination and power details so the offer reflects the actual production requirement.

Information to send with your enquiry

• Pipe material
• Diameter
• Wall thickness
• Thread form
• Pitch and length

To review your application, send IMC your component drawing and requirements. You can also compare related machines and tooling in the product range.
