Die-Head PVC Pipe Threading Machine – Tooling & Setup

The name of Industrial Machinery Corporation dazzles in the directory of manufacturers and exporters of high quality machinery used in industries and workshops. Over the extent of ten years, we have gained much specialization and fame through it; manufacturing all types of pipe threading machines. Next on our list was an absolutely new PVC Pipe Threading Machines which was built to cater to and meet all the demands arising related to maintenance of quality and precision while threading PVC pipes. Our newly launched PVC Pipe Threading Machines has a specially designed and fitter lathe that has the capacity to thread ranging from 50 M.M to 250 M.M for 3 meter or a 4 meter pipe. The new and improvised collets system ensures that pipes of various lengths are quickly uploaded and downloaded. We have also assembled this new PVC Pipe Threading Machines with double saddle system to allow two workers to work at one time. Mingling two users to work concurrently allows them to carry out inside and outside threading at a single time.

The PVC Pipe Threading Machines that we fabricate here at Industrial Machinery Corporation are all made using high quality raw material and we make sure that raw material that we are using passes all the quality checks. We do this to keep the sturdiness of the PVC Pipe Threading Machines very high which delivers best results every time it is used. These actions have made our reputation, worth noticing in the world of industrial machines manufacturers and exporters and the demand of PVC Pipe Threading Machines made by us is ever increasing.

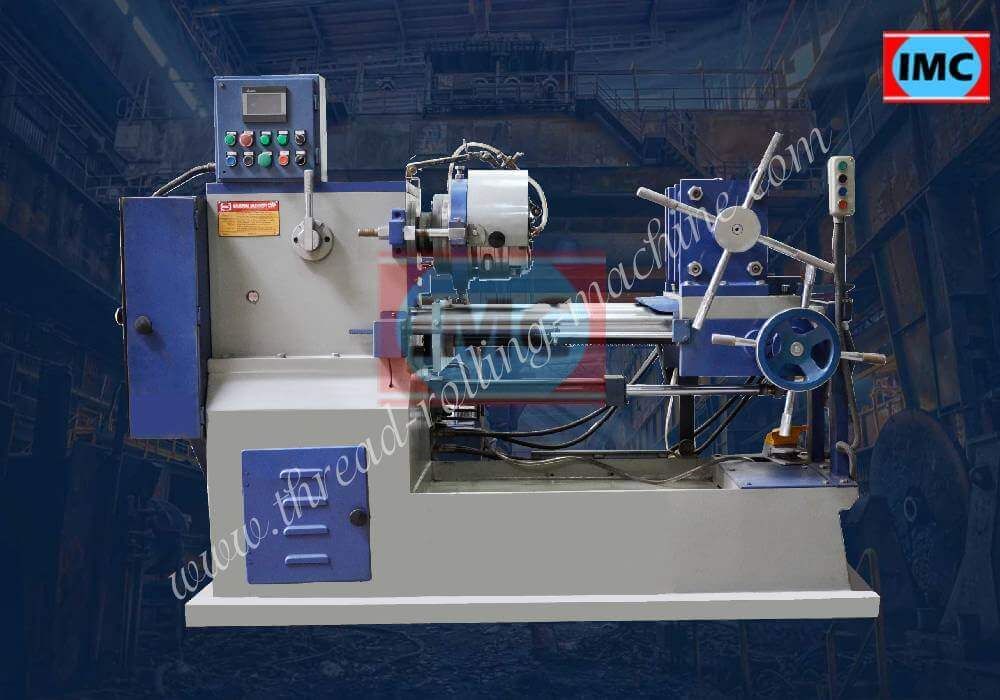

Just like any other pipe threading machine, PVC Pipe Threading Machine also works on a very reliable “chasing method” using HSS tangential as cutters. This theory makes pipes stay at one place while rotating the die head to create threads. The types of threads that can be created by these PVC Pipe Threading Machines are the same as of any pipe threading machine which are BSP, MATRIX, BSPT, NPT, UNF,UNC, BSW, Acme Threads and as usual, this will depend on the type of chaser that is operational in this machines. Following are the parts of this PVC Pipe Threading Machines .

• Base

• Head Stock

• Saddle

• Pillar Or Bed Type Clamping Vice

• Die Head

Head stock: it is basically a geared head-box made from supreme quality casting which gives support to spindle bearing.

The bed: bed is a platform resting on two pillars which are made of nicely treated steel and are duly hard chrome plated.

Saddle: saddle is installed on two steel rods very accurately. Its main task is to precisely and effortlessly move the head stock alignment.

Apron: the apron mobilizes the saddle on the steel rack and pinion fixtures. The gears of an apron are made using finest stainless steel.

Vice jaws: the vice jaw is made up of alloyed stainless steel and a finely aligned and installed on the saddle. Vice jaws are kept under direction using a screw on the saddle and vice jaws are heat treated.

Range of PVC Pipe Threading Machines manufactured at Industrial Machinery Corporation.

3/8'' to 1.12'' do/- Capacity Pipe & Bolt

1/2'' to 2'' do/-

1/2'' to 2.1/2'' do/-

1'' to 4'' Capacity Pipe

2.1/2'' to 6'' do/-

4” to 8” do/-

PVC Pipe Threading Machine Specifications:

PVC Pipe Threading Machine Tangential Chaser

IMC Tangential Chasers are manufactured from imported High Speed Steel which must pass exacting metallurgical standard. Experienced heat treatment with the automatic imported heat treatment plant and imported Testing equipment's, assures that they will perform satisfactorily in service and produce quality threads within the tolerance for which they ware intended.

IMC Chaser are interchangeable. If one Pc. of a chaser set is damaged & is beyond use. Then same No. pc. Of the other chaser set lying in stock may be used and there will not be any difference in threading performance and the damaged set can be replaced without the necessity of replacing entire set.
